Part number: TA0320JM

• Availability:
• Price:
• Description:

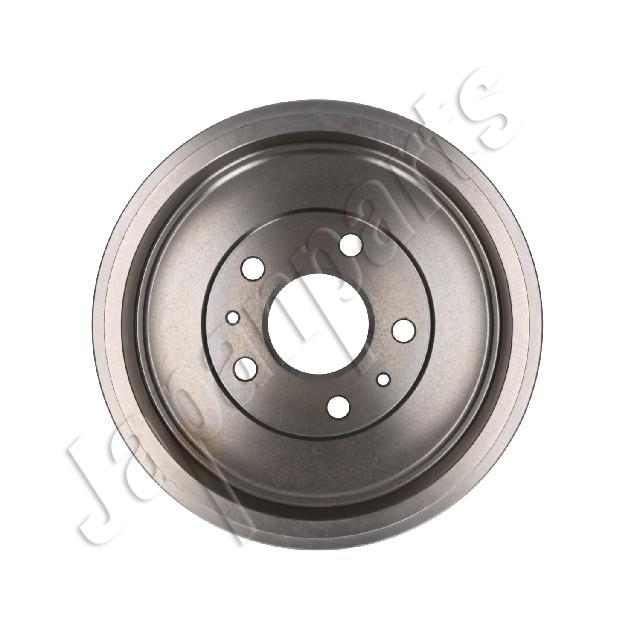

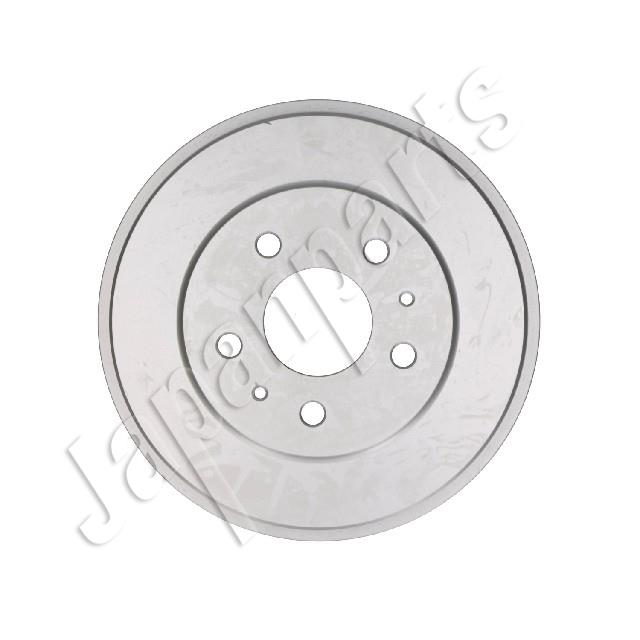

  Brake Drum
• Number of mounting bores
  1
• Width [mm]
  51,0
• Thickness [mm]
  63,6
• Outer Diameter [mm]
  250,0
• Bolt Hole Circle Ø [mm]
  108
• Fitting Position
  Rear Axle
• Centering Diameter [mm]
  63,6
• Inner brake drum diameter [mm]
  227
• Inner Brake Drum Height [mm]
  51,7
• Total Br. Drum Height [mm]
  63,5
• Number of Holes
  5
• Barcode:
  8052553926438

Previous Next

OEM Codes

• 1949898 (FORD)
• 1763131 (FORD)
• 1752037 (FORD)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
FORD B-MAX (JK) 1.0 EcoBoost	92	998	3	10-2012/ -	M1JE	Benzina
FORD B-MAX (JK) 1.0 EcoBoost	88	998	3	10-2012/ -	M1JA	Benzina
FORD B-MAX (JK) 1.0 EcoBoost	74	998	3	10-2012/ -	SFJA	Benzina
FORD B-MAX (JK) 1.0 EcoBoost	103	998	3	02-2016/ -		Benzina
FORD B-MAX (JK) 1.4	66	1388	4	10-2012/ -	SPJD	Benzina
FORD B-MAX (JK) 1.4 LPG	66	1388	4	08-2013/ -	RTJC	Benzina/Gasauto (GPL)
FORD B-MAX (JK) 1.4 LPG	63	1388	4	08-2013/ -	RTJC	Benzina/Gasauto (GPL)
FORD B-MAX (JK) 1.5 TDCi	55	1499	4	10-2012/ -	UGJC	Diesel
FORD B-MAX (JK) 1.5 TDCi	70	1499	4	04-2015/ -		Diesel
FORD B-MAX (JK) 1.6 TDCi	70	1560	4	10-2012/ -	T3JB	Diesel
FORD B-MAX (JK) 1.6 Ti	77	1596	4	10-2012/ -	IQJA	Benzina
FORD B-MAX Van 1.0 EcoBoost	74	998	3	10-2012/ -	SFJA	Benzina
FORD B-MAX Van 1.0 EcoBoost	92	998	3	10-2012/ -	M1JE	Benzina
FORD B-MAX Van 1.4	66	1388	4	10-2012/ -	SPJD	Benzina
FORD B-MAX Van 1.5 TDCi	55	1499	4	10-2012/ -	UGJC	Diesel
FORD B-MAX Van 1.5 TDCi	70	1499	4	04-2015/ -		Diesel
FORD B-MAX Van 1.6 TDCi	70	1560	4	10-2012/ -	T3JB	Diesel
FORD B-MAX Van 1.6 Ti	77	1596	4	10-2012/ -	IQJA	Benzina
