Part number: PA286JM

• Availability:
• Price:
• Description:

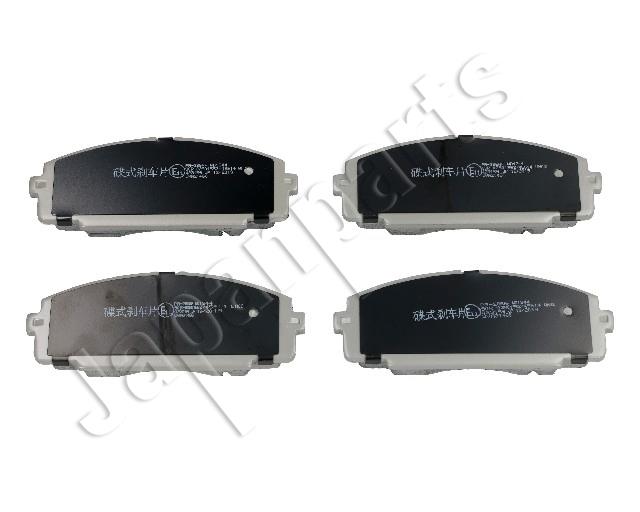

  Brake Pad Set, disc brake
• Fitting Position
  Front Axle
• Brake Type
  Disc Brake
• Length [mm]
  145,5
• Height [mm]
  56,7
• Thickness [mm]
  15,2
• WVA Number
  21468
• Test Mark
  ECE R90 APPROVED
• for OE number
  0446525040
• Brake System
  SUMITOMO
• Barcode:
  8057333020733

OEM Codes

• 449126320 (TOYOTA)
• 449126270 (TOYOTA)
• 449126262 (TOYOTA)
• 449126261 (TOYOTA)
• 449126210 (TOYOTA)
• 449126191 (TOYOTA)
• 449126170 (TOYOTA)
• 449126110 (TOYOTA)
• 446526350 (TOYOTA)
• 446526340 (TOYOTA)
• 446525050 (TOYOTA)
• 0449126191 (TOYOTA)
• 04465YZZAJ (TOYOTA)
• 04465YZZAD (TOYOTA)
• 0446526390 (TOYOTA)
• 0446526370 (TOYOTA)
• 0446526320 (TOYOTA)
• 0446526301 (TOYOTA)
• 0446526250 (TOYOTA)
• 0446526100 (TOYOTA)
• 0446526090 (TOYOTA)
• 0446526020 (TOYOTA)
• 0446525090 (TOYOTA)
• 0446525060 (TOYOTA)
• 0446525050 (TOYOTA)
• 0446525040 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA DYNA 100 Pianale piatto/Telaio (LY1_, YY1_) 2.4 D (LY100_)	54	2446	4	05-1995/07-2001		Diesel
TOYOTA DYNA Pianale piatto/Telaio 2.4 D	55	2449	4	09-1984/08-1987	2J	Diesel
TOYOTA DYNA Pianale piatto/Telaio (KD_, LY_, TRY2_, KDY2_ 2.5 D4d	75	2494	4	08-2001/ -	2KD-FTV	Diesel
TOYOTA DYNA Pianale piatto/Telaio (KD_, LY_, TRY2_, KDY2_ 2.5 D4d	65	2494	4	07-2001/ -	2KD-FTV	Diesel
TOYOTA DYNA Pianale piatto/Telaio (KD_, LY_, TRY2_, KDY2_ 3.0 D4d	80	2982	4	09-2006/ -	1KD-FTV	Diesel
TOYOTA DYNA Pianale piatto/Telaio (KD_, LY_, TRY2_, KDY2_ 3.0 D4d	100	2982	4	10-2009/ -	1KD-FTV	Diesel
TOYOTA DYNA Pianale piatto/Telaio (KD_, LY_, TRY2_, KDY2_ 3.0 D4d	106	2982	4	10-2009/ -	1KD-FTV	Diesel
TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 2.0	65	1998	4	12-1982/08-1989	3Y	Benzina
TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 2.4 D	55	2446	4	12-1982/11-1989	2L	Diesel
TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.0 (H5G)	65	1998	4	01-1985/08-1989	3Y	Benzina
TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.4 D (H5G)	55	2446	4	04-1984/08-1989	2L	Diesel
TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.4 D 4WD (H5F)	54	2446	4	01-1987/08-1989	2L	Diesel
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 4WD	88	2438	4	08-1989/08-1995	2RZ-E	Benzina
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 (RZH103, RZH113)	85	2438	4	08-1989/07-1998		Benzina
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 D	57	2446	4	09-1989/08-1995	2L	Diesel
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 D 4WD	55	2446	4	08-1989/07-1999	2L	Diesel
TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 i (RZH103, RZH113)	85	2438	4	08-1998/08-2004		Benzina
TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 4WD	88	2438	4	08-1989/07-1995	2RZ-E	Benzina
TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 D 4WD	55	2446	4	08-1987/08-1995	2L	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 (RCH12_, RCH22_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.4 4WD (RCH18_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.4 D	58	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 D	55	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 TD (LXH12_, LXH22_)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.4 TD 4WD (H18/28)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	86	2494	4	08-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	70	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D 4WD	75	2494	4	11-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.7	106	2694	4	07-1998/12-2006	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.7 (RCH13_, RCH23_)	105	2694	4	04-1998/11-2001	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.7 4WD (RCH19_)	105	2694	4	04-1998/08-2006	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.7 4WD	106	2694	4	07-1998/06-2005	3RZ-FE	Benzina
TOYOTA HIACE IV Furgonato (H100) 2.5 D-4D 4x4	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 (RCH12_, RCH22_)	85	2438	4	08-1995/11-2003	2RZ-E	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 4WD (RCH18_, RCH28_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 D	55	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_)	58	2446	4	08-1995/08-2001	2L	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 i (RZH10)	88	2438	4	08-1995/02-2005	2RZ-E	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d 4x4	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.7 (RCH13_, RCH23_)	105	2694	4	04-1998/06-2005	3RZ-FE	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.7 4WD (RCH19_, RCH29_)	105	2694	4	07-1998/06-2005	3RZ-FE	Benzina
TOYOTA HIACE IV Furgonato (TRH2_, KDH2_) 2.5 D-4D	70	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE V Furgonato 2.5 D-4D	70	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE V Wagon 2.5 D-4D 4x4	86	2494	4	08-2006/ -	2KD-FTV	Diesel
