Part number: DI836JM

• Availability:
• Price:
• Description:

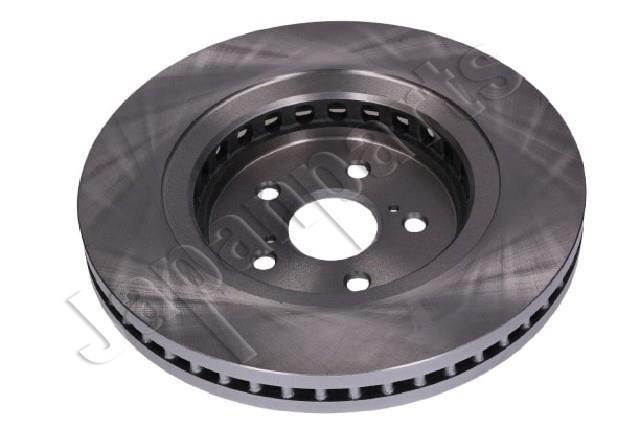

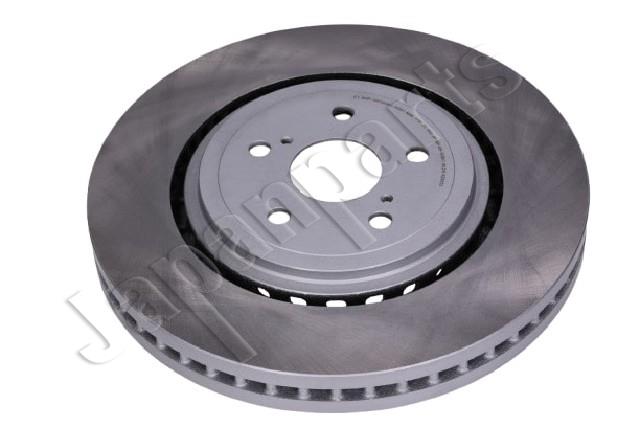

  Brake Disc
• Brake Disc Type
  Externally Vented
• Outer Diameter [mm]
  340
• Brake Disc Thickness [mm]
  38
• Minimum thickness [mm]
  35
• Number of Holes
  5
• Bolt Hole Circle Ø [mm]
  114,3
• Height [mm]
  49,4
• Wheel Hub Diameter [mm]
  62
• for OE number
  T435124815
• Barcode:
  8057333252318

Previous Next

OEM Codes

• T435124815000 (SUZUKI)
• T435124815 (SUZUKI)
• 4351278030 (LEXUS)
• 4351278030 (TOYOTA)
• 4351248150 (LEXUS)
• 4351248150 (TOYOTA)
• 435120E070 (LEXUS)
• 435120E070 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
LEXUS NX II (_A2_, _H2_) 450h+ E-Four (AAZH26)	227	2487	4	09-2021/ -		Benzina/Elettrico
LEXUS RX (_LA1_, _LH1_) 350h E-Four (AALH15)	180	2487	4	06-2022/ -		Benzina/Elettrico
LEXUS RX (_LA1_, _LH1_) 450h+ E-Four (AALH15)	225	2487	4	06-2022/ -		Benzina/Elettrico
SUZUKI ACROSS (A5Z_) 2.5 Hybrid	225	2487	4	06-2020/ -		Benzina/Elettrico
TOYOTA HIGHLANDER (GSU7_, AXUH7_) 2.5 Hybrid AWD (AXUH78)	181	2487	4	12-2019/ -		Benzina/Elettrico
TOYOTA RAV 4 V (_A5_) 2.5 Hybrid AWD (AXAP54)	225	2487	4	09-2020/ -		Benzina/Elettrico
