Part number: DI520JM

• Availability:
• Price:
• Description:

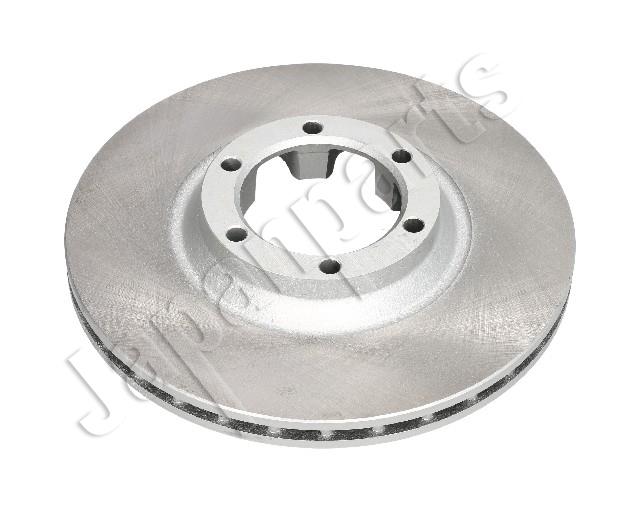

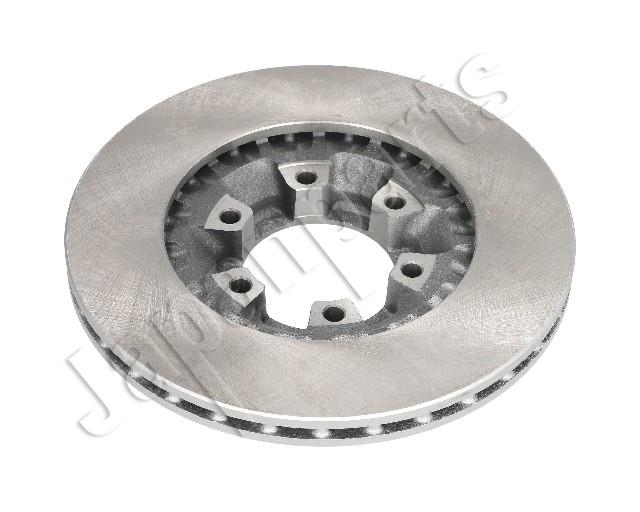

  Brake Disc
• Fitting Position
  Front Axle
• Bolt Hole Circle Ø [mm]
  87
• Height [mm]
  45
• Outer Diameter [mm]
  276,3
• Brake Disc Thickness [mm]
  22
• Minimum thickness [mm]
  20
• Number of bores
  6
• Brake Disc Type
  Vented
• Brake System
  SUMITOMO
• Test Mark
  ECE R90 APPROVED
• Surface
  Painted
• Tightening Torque [Nm]
  100
• for OE number
  MB407039
• Barcode:
  8057333010734

Previous Next

OEM Codes

• MN116706 (MITSUBISHI)
• MB407039 (MITSUBISHI)
• MB407038 (MITSUBISHI)
• HB403101 (HYUNDAI)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
MITSUBISHI GALLOPER (JK-01) 3.0 V6	104	2972	6	02-1999/ -	G6AT	Benzina
MITSUBISHI L 200 (K3_T, K2_T, K1_T, K0_T) 2.5 D 4WD (K24T)	51	2476	4	12-1987/05-1993	4D56 (8V)	Diesel
MITSUBISHI L 200 (K3_T, K2_T, K1_T, K0_T) 2.5 TD 4WD (K34T)	64	2477	4	11-1992/08-1996	4D56-T	Diesel
MITSUBISHI L 200 (K7_T, K6_T) 2.5 D (K64T)	55	2477	4	06-1996/12-2007	4D56 (8V)	Diesel
MITSUBISHI L 200 (K7_T, K6_T) 2.5 TD 4WD	98	2477	4	08-2001/12-2007	4D56-T	Diesel
MITSUBISHI L 200 (K7_T, K6_T) 2.5 TD 4x4 (K74T)	73	2477	4	06-1996/12-2007	4D56-TD	Diesel
MITSUBISHI L 300 Autobus (P0_W, P1_W, P2_W) 2.0 4WD (P23V, P23W)	65	1997	4	12-1986/05-2004	4G63 (SOHC 8V)	Benzina
MITSUBISHI L 300 Autobus (P0_W, P1_W, P2_W) 2.0 4WD (P23W)	66	1997	4	11-1986/05-2004	4G63 (SOHC 8V)	Benzina
MITSUBISHI L 300 Autobus (P0_W, P1_W, P2_W) 2.4 4WD (P24W, P24V)	80	2351	4	11-1986/12-1990	G64B	Benzina
MITSUBISHI L 300 Autobus (P0_W, P1_W, P2_W) 2.4 4WD (P24W, P24V)	82	2351	4	08-1986/05-2004	4G64 (8V)	Benzina
MITSUBISHI L 300 Autobus (P0_W, P1_W, P2_W) 2.5 TD	64	2477	4	02-1987/05-2003	4D56-T	Diesel
MITSUBISHI L 300 Autobus (P0_W, P1_W, P2_W) 2.5 TD 4WD (P25W, P25V)	64	2477	4	12-1987/05-2004	4D56-T	Diesel
MITSUBISHI L 300 Furgonato (P0_W, P1_W) 2.0 4x4	63	1997	4	08-1988/05-1994	4G63 (SOHC 8V)	Benzina
MITSUBISHI L 300 Furgonato (P0_W, P1_W) 2.5 TD 4x4	64	2477	4	11-1991/05-2003	4D56-T	Diesel
MITSUBISHI PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G)	64	2477	4	04-1987/12-1991	4D56-T	Diesel
MITSUBISHI PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G)	70	2477	4	11-1989/11-1990	4D56-T	Diesel
MITSUBISHI PAJERO I (L04_G, L14_G) 2.5 TD 4x4	62	2477	4	10-1986/05-1991	4D56-T	Diesel
MITSUBISHI PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G)	70	2477	4	11-1989/11-1990	4D56-T	Diesel
MITSUBISHI PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G)	62	2477	4	05-1986/10-1989	4D56-T	Diesel
