Part number: DI0971JM

• Availability:
• Price:
• Description:

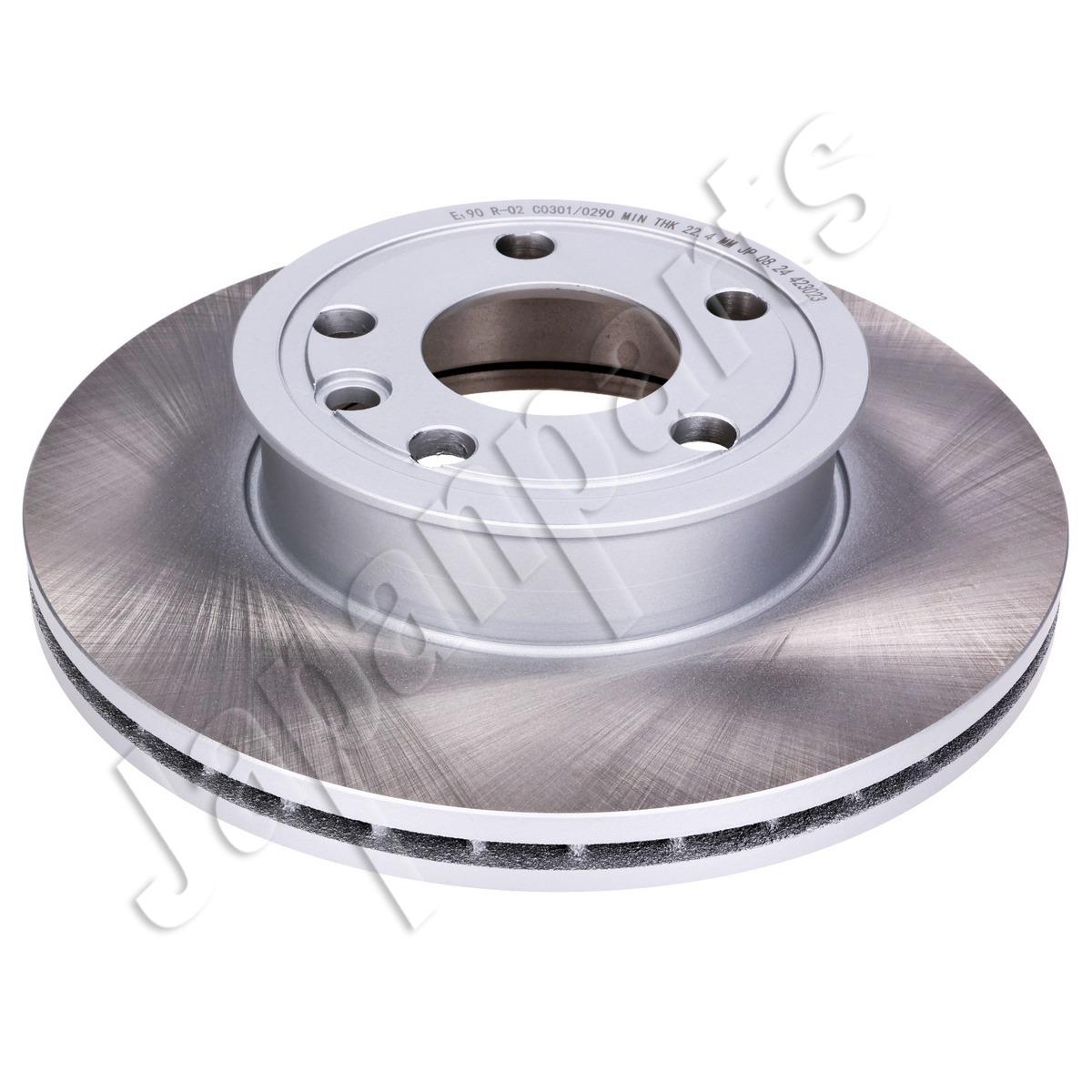

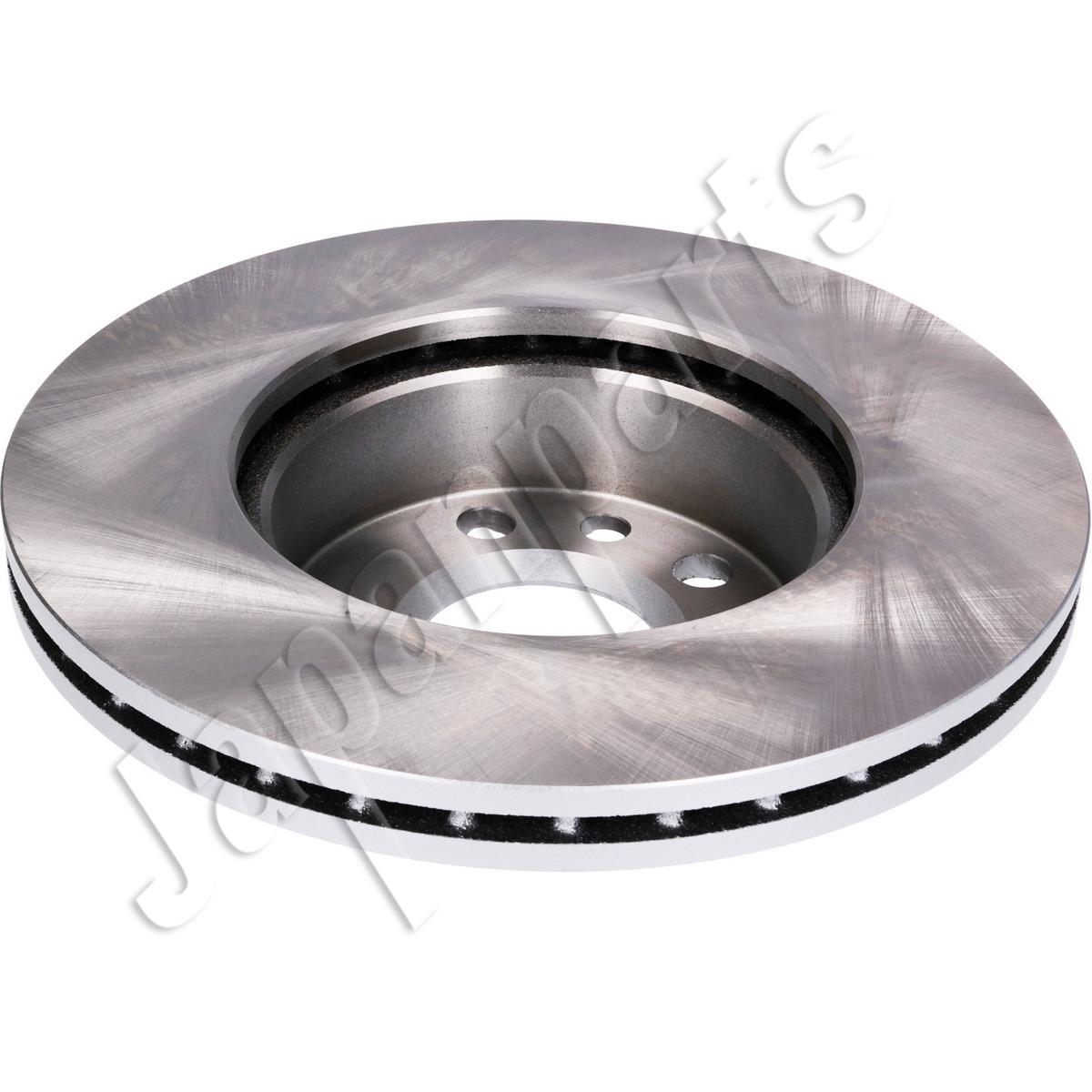

  Brake Disc
• Fitting Position
  Front Axle
• Outer Diameter [mm]
  280
• Height [mm]
  64,7
• Brake Disc Type
  Vented
• Brake Disc Thickness [mm]
  24
• Minimum thickness [mm]
  20
• Number of Holes
  5
• Centering Diameter [mm]
  68,1
• Tightening Torque [Nm]
  11,5
• Colour
  black
• Surface
  Painted
• for OE number
  701615301A
• Barcode:
  8057333252165

Previous Next

OEM Codes

• 901615301D (VW)
• 701615301D (AUDI)
• 701615301D (SEAT)
• 701615301D (SKODA)
• 701615301D (VW)
• 701615301A (AUDI)
• 701615301A (SEAT)
• 701615301A (SKODA)
• 701615301A (VW)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 1.8	49	1781	4	12-1990/07-1992	PD	Benzina
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 1.9 D	44	1896	4	09-1990/12-1995	1X	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 1.9 TD	50	1896	4	10-1992/04-2003	ABL	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.0	62	1968	4	09-1990/04-2003	AAC	Benzina
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.4 D	57	2370	5	09-1990/04-1998	AAB	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.4 D	55	2370	5	08-1997/04-2003	AJA	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.4 D Syncro	57	2370	5	10-1992/09-1998	AAB	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5	81	2461	5	09-1990/06-2003	AAF	Benzina
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5	85	2461	5	08-1996/04-2003	AET	Benzina
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5 Syncro	85	2461	5	07-1996/04-2003	AET	Benzina
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5 Syncro	81	2461	5	08-1992/04-2003	AAF	Benzina
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5 TDI	65	2461	5	05-1998/04-2003	AJT	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5 TDI	111	2461	5	05-1998/04-2003	AHY	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5 TDI	75	2461	5	09-1995/04-2003	ACV	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.5 TDI Syncro	75	2461	5	01-1996/04-2003	ACV	Diesel
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.8 V6	150	2792	6	04-2000/04-2003	AMV	Benzina
VW TRANSPORTER IV Autobus (70XB, 70XC, 7DB, 7DW) 2.8 VR 6	103	2792	6	11-1995/04-2000	AES	Benzina
VW TRANSPORTER IV Furgonato (70XA) 1.9 D	45	1896	4	07-1990/12-1995	1X	Diesel
VW TRANSPORTER IV Furgonato (70XA) 1.9 D	44	1896	4	09-1990/12-1995	1X	Diesel
VW TRANSPORTER IV Furgonato (70XA) 1.9 TD	50	1896	4	10-1992/04-2003	ABL	Diesel
VW TRANSPORTER IV Furgonato (70XA) 2.0	62	1968	4	07-1990/04-2003	AAC	Benzina
VW TRANSPORTER IV Furgonato (70XA) 2.4 D	57	2370	5	07-1990/04-1998	AAB	Diesel
VW TRANSPORTER IV Furgonato (70XA) 2.4 D	55	2370	5	08-1997/04-2003	AJA	Diesel
VW TRANSPORTER IV Furgonato (70XA) 2.4 D Syncro	57	2370	5	10-1992/09-1998	AAB	Diesel
VW TRANSPORTER IV Furgonato (70XA) 2.5	81	2461	5	11-1990/04-2003	AAF	Benzina
VW TRANSPORTER IV Furgonato (70XA) 2.5	85	2461	5	08-1996/04-2003	AET	Benzina
VW TRANSPORTER IV Furgonato (70XA) 2.5 Syncro	85	2461	5	08-1996/04-2003	AET	Benzina
VW TRANSPORTER IV Furgonato (70XA) 2.5 Syncro	81	2461	5	01-1996/11-2001	AAF	Benzina
VW TRANSPORTER IV Furgonato (70XA) 2.5 TDI	75	2461	5	09-1995/04-2003	ACV	Diesel
VW TRANSPORTER IV Furgonato (70XA) 2.5 TDI	111	2461	5	09-2000/04-2003	AXG	Diesel
VW TRANSPORTER IV Furgonato (70XA) 2.5 TDI	65	2461	5	12-1998/04-2003	AJT	Diesel
VW TRANSPORTER IV Furgonato (70XA) 2.5 TDI Syncro	75	2461	5	09-1995/04-2003	ACV	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 1.9 D	44	1896	4	09-1990/12-1995	1X	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 1.9 D	45	1896	4	07-1990/12-1995	1X	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 1.9 TD	50	1896	4	10-1992/04-2003	ABL	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.0	62	1968	4	07-1990/04-2003	AAC	Benzina
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.4 D	55	2370	5	08-1997/04-2003	AJA	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.4 D	57	2370	5	09-1990/04-1998	AAB	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.4 D Syncro	57	2370	5	10-1992/09-1998	AAB	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.5	85	2461	5	08-1996/04-2003	AET	Benzina
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.5	81	2461	5	11-1990/04-2003	AAF	Benzina
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.5 Syncro	81	2461	5	11-1992/11-2001	AAF	Benzina
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.5 Syncro	85	2461	5	08-1996/04-2003	AET	Benzina
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.5 TDI	75	2461	5	09-1995/04-2003	ACV	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.5 TDI	65	2461	5	05-1998/04-2003	AJT	Diesel
VW TRANSPORTER IV Pianale piatto/Telaio (70XD) 2.5 TDI Syncro	75	2461	5	05-1998/04-2003	ACV	Diesel
