Search By Code BQ224L

Part number: BQ224L

Availability:
Price:
Description:

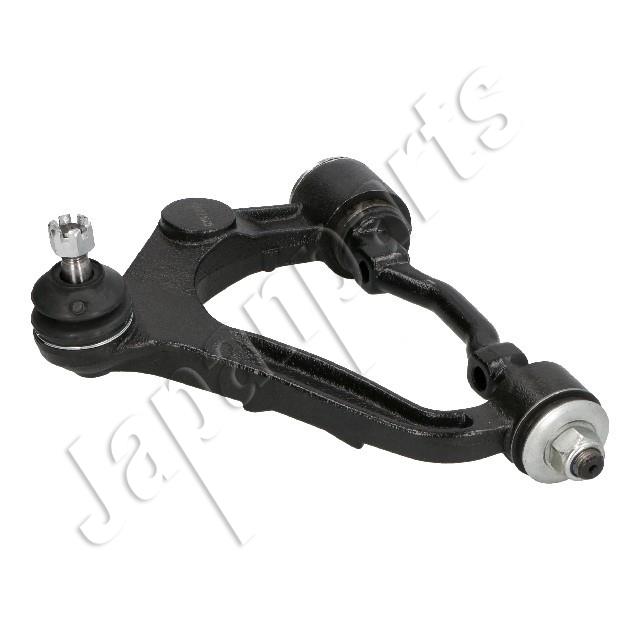

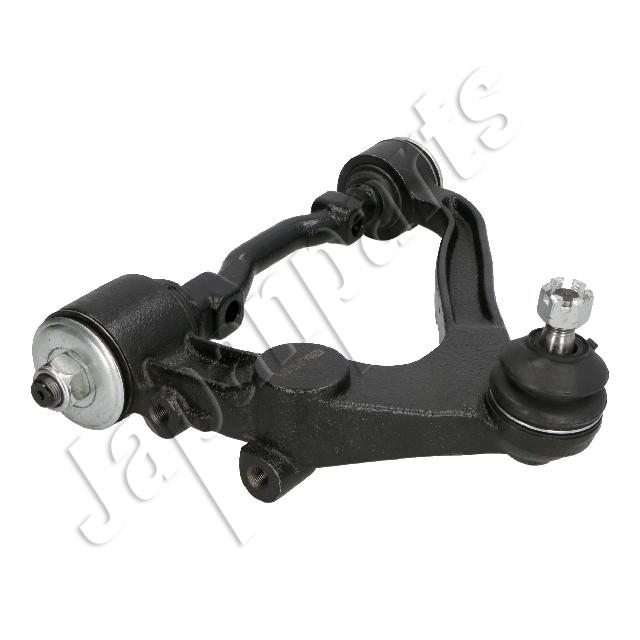

Control/Trailing Arm, wheel suspension
Fitting Position
Left Front
Fitting Position
Upper
Overall Height [mm]
109
Fitted Diameter [mm]
17
External Thread [mm]
16 X 1,5
Barcode:
8052553939797

4806729085 (TOYOTA)
4806729075 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA HIACE / COMMUTER IV (TRH2_, KDH2_) 2.5 D-4D	75	2494	4	09-2006/ -	2KD-FTV	Diesel

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 4WD	88	2438	4	08-1989/08-1995	2RZ-E	Benzina

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 D	57	2446	4	09-1989/08-1995	2L	Diesel

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 D 4WD	55	2446	4	08-1989/07-1999	2L	Diesel

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 4WD	88	2438	4	08-1989/07-1995	2RZ-E	Benzina

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 D 4WD	55	2446	4	08-1987/08-1995	2L	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.4 (RCH12_, RCH22_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina

TOYOTA HIACE IV Autobus (LH1_) 2.4 4WD (RCH18_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina

TOYOTA HIACE IV Autobus (LH1_) 2.4 D	55	2446	4	08-1995/08-2001	2L	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.4 D	58	2446	4	08-1995/08-2001	2L	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.4 TD (LXH12_, LXH22_)	66	2446	4	08-1995/08-2001	2L-T	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.4 TD 4WD (H18/28)	66	2446	4	08-1995/08-2001	2L-T	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	86	2494	4	08-2006/12-2012	2KD-FTV	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	70	2494	4	09-2006/12-2012	2KD-FTV	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D 4WD	75	2494	4	11-2001/08-2006	2KD-FTV	Diesel

TOYOTA HIACE IV Autobus (LH1_) 2.7	106	2694	4	07-1998/12-2006	3RZ-FE	Benzina

TOYOTA HIACE IV Autobus (LH1_) 2.7 (RCH13_, RCH23_)	105	2694	4	04-1998/11-2001	3RZ-FE	Benzina

TOYOTA HIACE IV Autobus (LH1_) 2.7 4WD (RCH19_)	105	2694	4	04-1998/08-2006	3RZ-FE	Benzina

TOYOTA HIACE IV Autobus (LH1_) 2.7 4WD	106	2694	4	07-1998/06-2005	3RZ-FE	Benzina

TOYOTA HIACE IV Autobus (LH1_) 3.0 D	65	2986	4	08-1998/ -	5L	Diesel

TOYOTA HIACE IV Furgonato (H100) 2.5 D-4D 4x4	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 (RCH12_, RCH22_)	85	2438	4	08-1995/11-2003	2RZ-E	Benzina

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 4WD (RCH18_, RCH28_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 D	55	2446	4	08-1995/08-2001	2L	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 D (LXH12_, LXH22_)	58	2446	4	08-1995/08-2001	2L	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 i (RZH10)	88	2438	4	08-1995/02-2005	2RZ-E	Benzina

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 TD (LXH12_, LXH22_)	66	2446	4	08-1995/08-2001	2L-T	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_)	66	2446	4	08-1995/08-2001	2L-T	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D 4WD	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d 4x4	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.7 (RCH13_, RCH23_)	105	2694	4	04-1998/06-2005	3RZ-FE	Benzina

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.7 4WD (RCH19_, RCH29_)	105	2694	4	07-1998/06-2005	3RZ-FE	Benzina

TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 3.0 D	65	2986	4	08-1998/ -	5L	Diesel

TOYOTA HIACE IV Furgonato (TRH2_, KDH2_) 2.5 D-4D	75	2494	4	06-2004/ -	2KD-FTV	Diesel

TOYOTA HIACE V Furgonato 2.5 D-4D	70	2494	4	09-2006/ -	2KD-FTV	Diesel

TOYOTA HIACE V Wagon 2.5 D-4D 4x4	86	2494	4	08-2006/ -	2KD-FTV	Diesel
